VIU™ for Narrow Fabrics

Standard and customized Vision Inspection Units for rigid and elastic fabrics, inline in the manufacturing process or offline running material from box to box.

COMVIS offers a variety of Vision Inspection Units for narrow rigid webbing, such as seatbelt webbing, dog leashes, belts for load securing, fall protection, airbag tether, hoses, etc. But also especially for elastic webbing, such as tapes, bands for sports, ski goggles, lingerie and underwear.

Together with the customer we determine how we can fit the inspection equipment into the process. For instance before the blocker or winder, or after dyeing the fabric. But also  a standalone system, where material is processed from box to box, is possible.

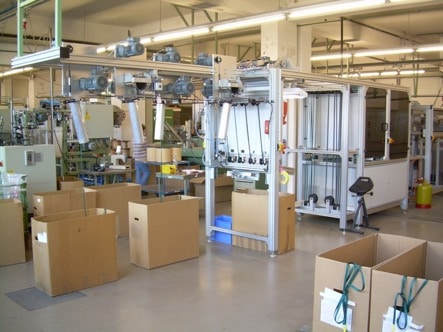

Inspection systems for narrow fabric are available as single-end or multi-end. For instance with 2, 4 or 8 tapes in 1 fabric inspection system. Furthermore, customers can choose for automatic labeling, or the integration of manual inspection table / splice table for the operator, or a combination of both.


  • Suitable for rigid and elastic webbing
  • Inspection speed up to 200 m/min
  • With or without splice table for operator
  • Single-end, 2-end our multi-end in 1 inspection system
  • Dancer controlled speed (optional)
  • Webbing tension air pressure controlled (optional)
  • Plasma coated haul motor (optional)
  • Speed adapted automatic labeling (optional)
  • Adjustable minimum label distance for defect clustering (optional)
  • Missed label detection (optional)
  • Accurate width measurement (+/- 0,05mm)
  • Automatic edge detection and width measurement
  • Edge defects and vision filaments

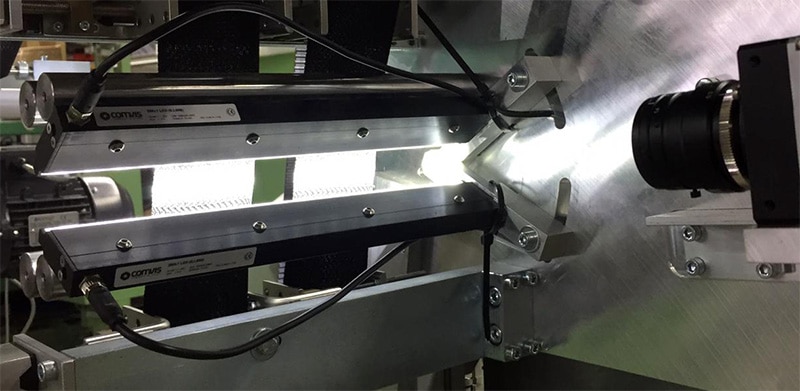

  • Surface inspection with 2 cameras (perpendicular and angled light)
  • Graphical overview of the running quality / history
  • Colored dots for defect types
  • Counters for applied labels, surface defects, filament defects
